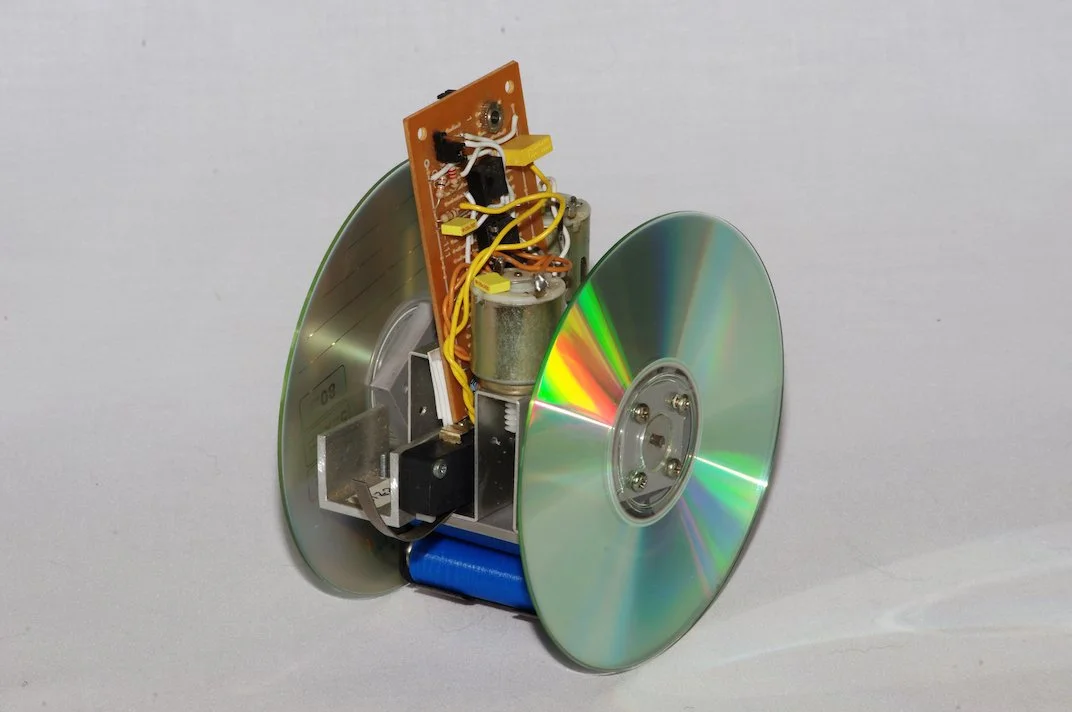

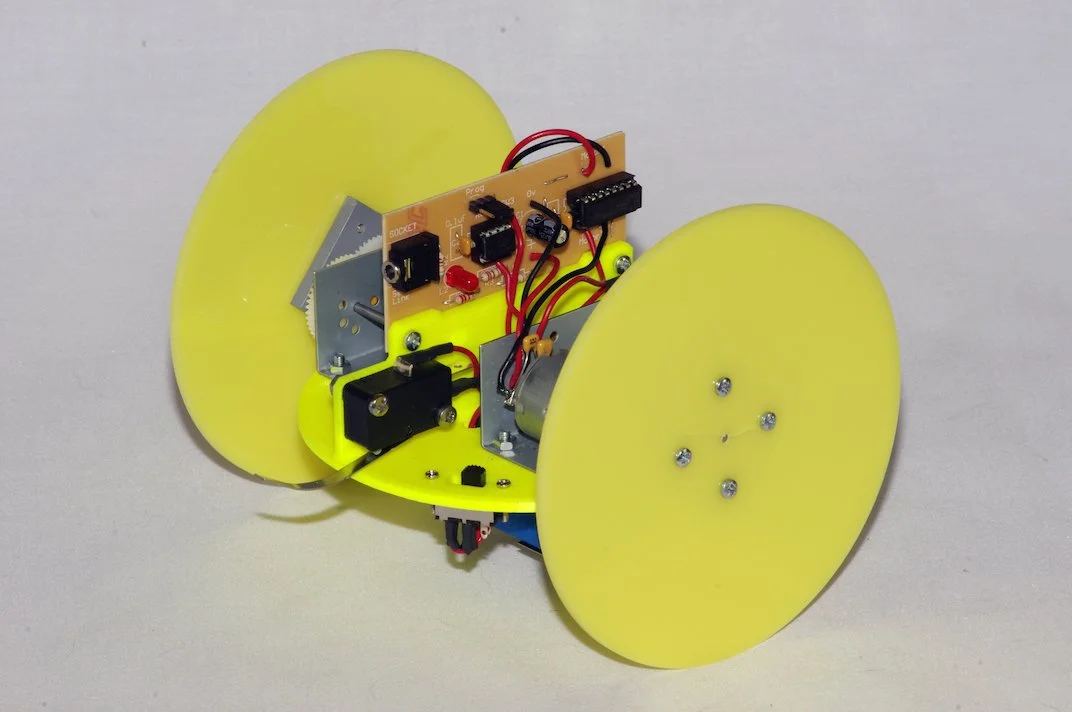

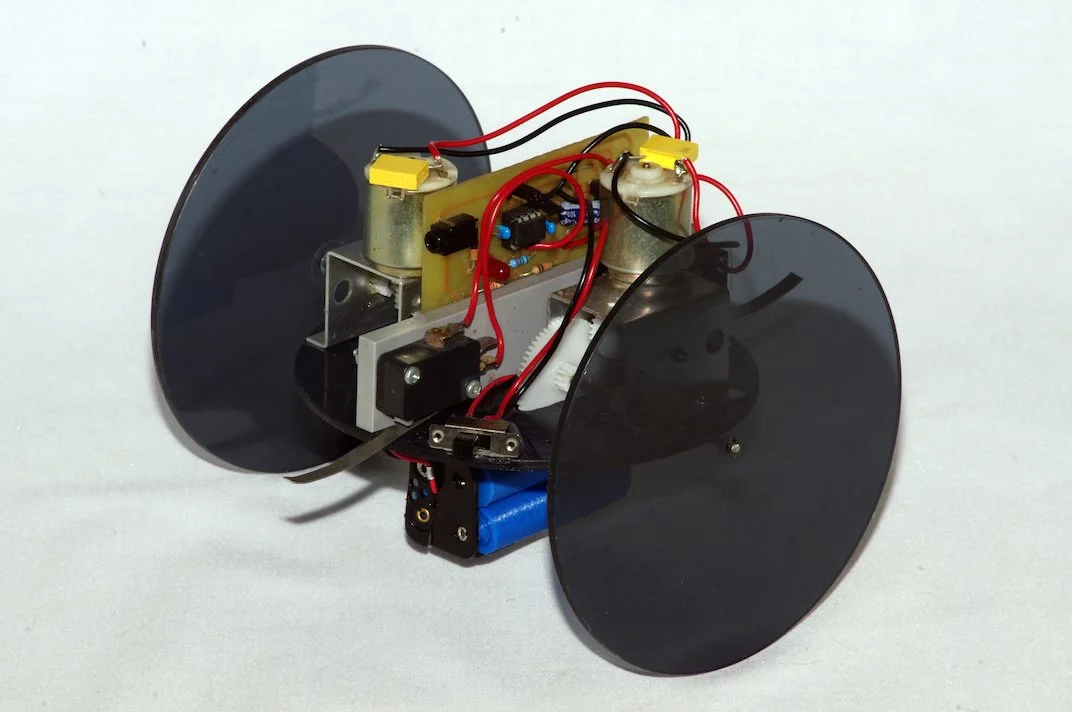

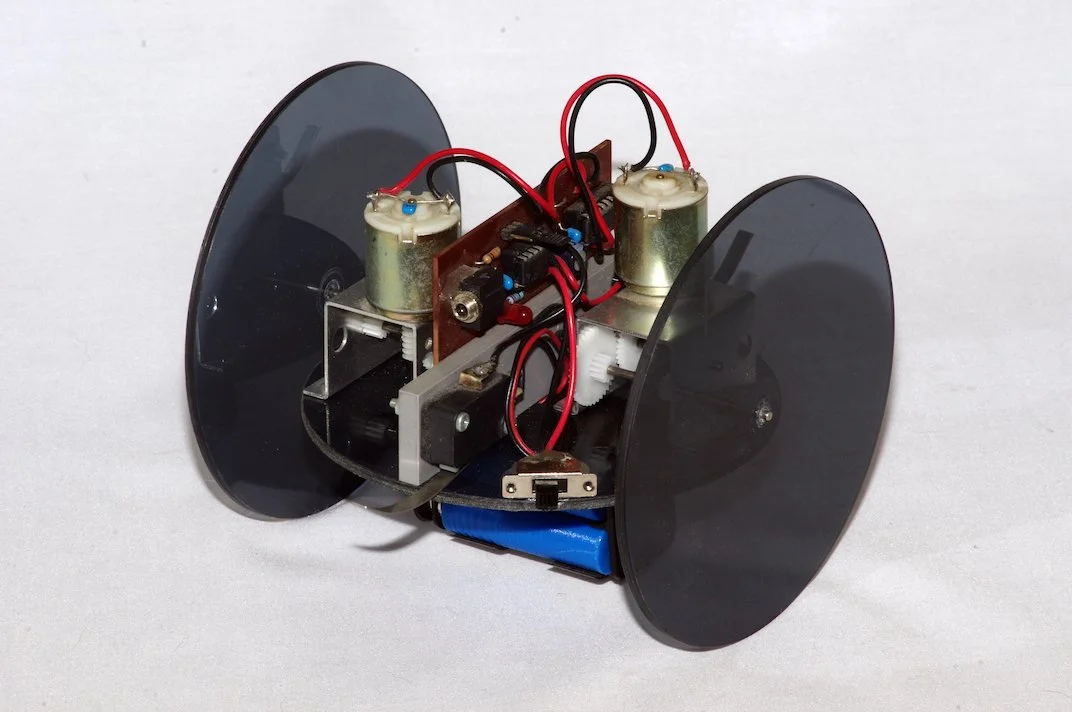

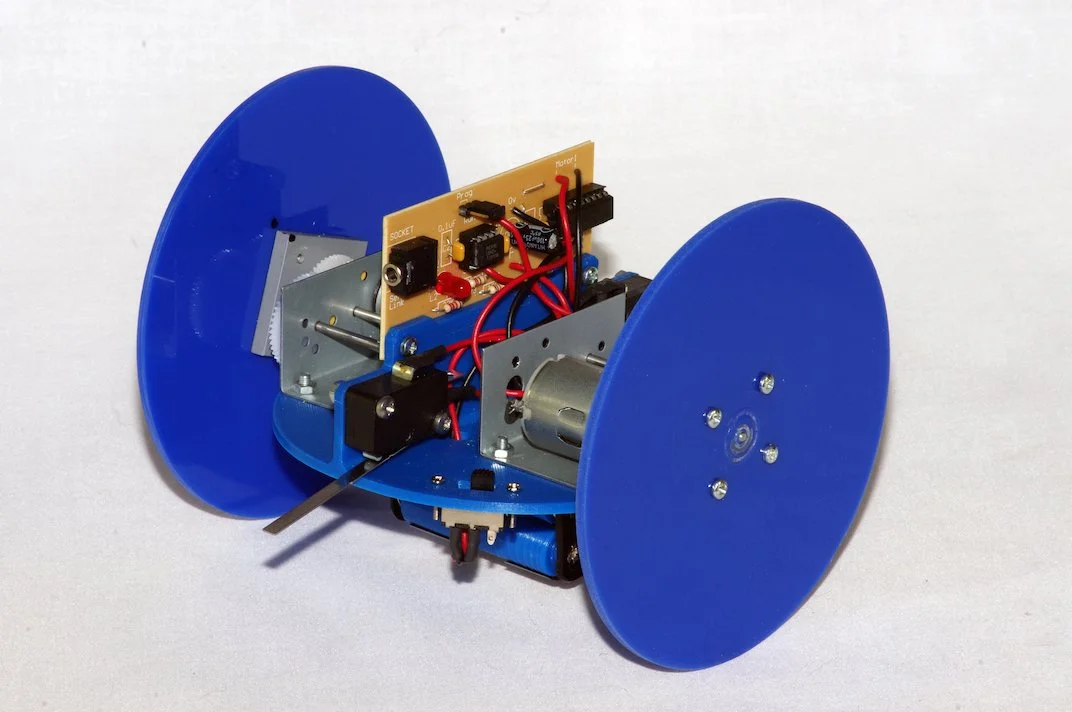

DIZZY is a two-wheeled user programmable vehicle. When it hits an object, DIZZY backs away, spins around quickly (hence its name) and continues in another direction. DIZZY also changes direction when it doesn’t hit anything for some time.

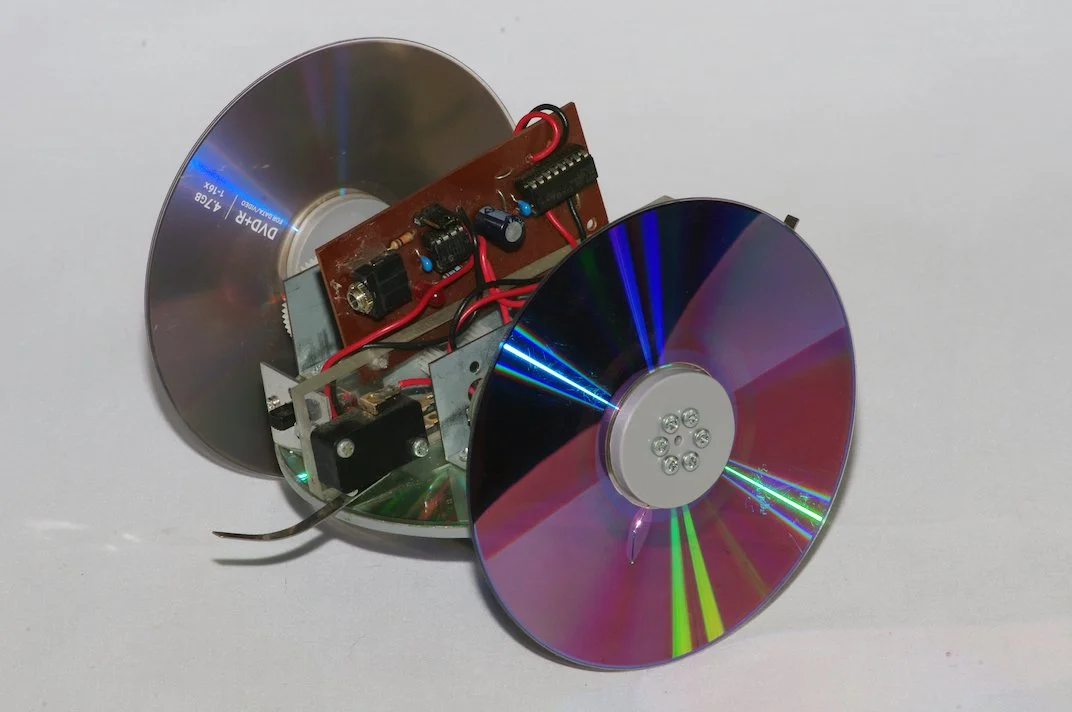

DIZZY has a lever arm microswitch at each end that detects an obstruction. It is driven by two electric motors, each with its own gearbox, and is controlled by a PICAXE-08M2 microcontroller. The prototype DIZZY was built using recycled CDs, but the concept has scope for individual variation, including the use of 3D printing.

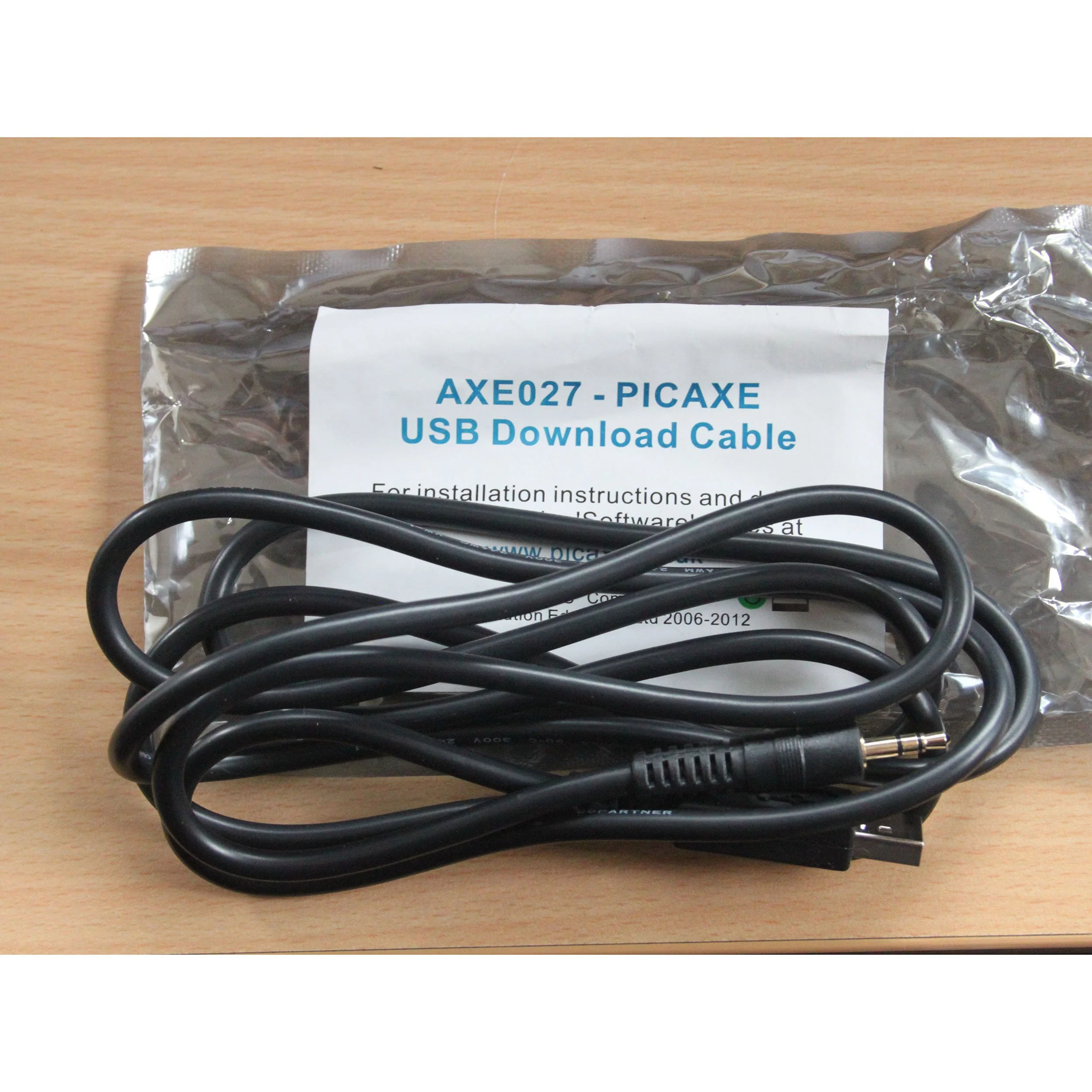

NOTE: A Picaxe Download cable is required (PICUCAB).
Soldering Required: Yes
Hours to Construct: 20 - 30
Programmable: Yes
Components included: Mechanical, Electrical & Electronic, PCB
Level: Advanced
Click here to see our teaching unit Overview for important information relating to the kit including additional requirements.
Prototype illustrated are of several possible outcomes.
Price per kit:
$54.70 (1 - 19)
$53.05 (20+)
IMPORTANT:
TECHNOLOGY KIT CONTENTS
Our kits contain all the electrical, electronic and mechanical components needed to build the device (only). The teacher supplies readily available material for wiring, making body parts, etc. – NO BODY PARTS OR WIRES ARE INCLUDED in the kits. Each order includes comprehensive instructions / Teaching Unit.
