4 of these panels can be connected in series or parallel to power the Sheridan car or other Solar challenge projects.
| CODE | SIZE | NO. OF PIECES | WATTS | VOLTS/AMPS (NOM) | WIRES (LENGTH) |
|---|---|---|---|---|---|
| SOLAR1 | 86 x 57 mm | 1 | 0.485 | 0.5V / 0.97A | --- |
| SOLAR2 | 86 x 133 mm | 1 | 1.2 | 1.5V / 0.8A | --- |
| SOLAR2L | 71 x 161 mm | 1 | 1.2 | 1.5V / 0.8A | --- |
| SOLAR3 | 105 x 72 mm | 1 | 0.68 | 2.0V / 0.34A | --- |

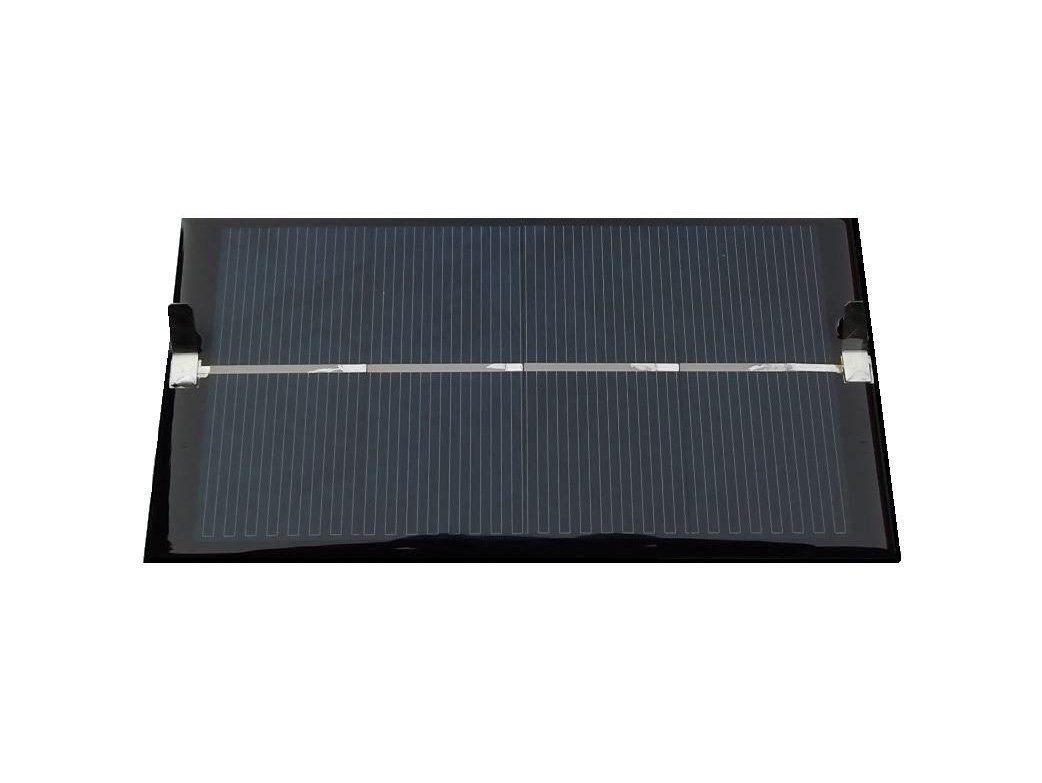

| SOLAR4 | 86 x 170 mm | 1 | 1.6 | 2.0V / 0.92 | --- |

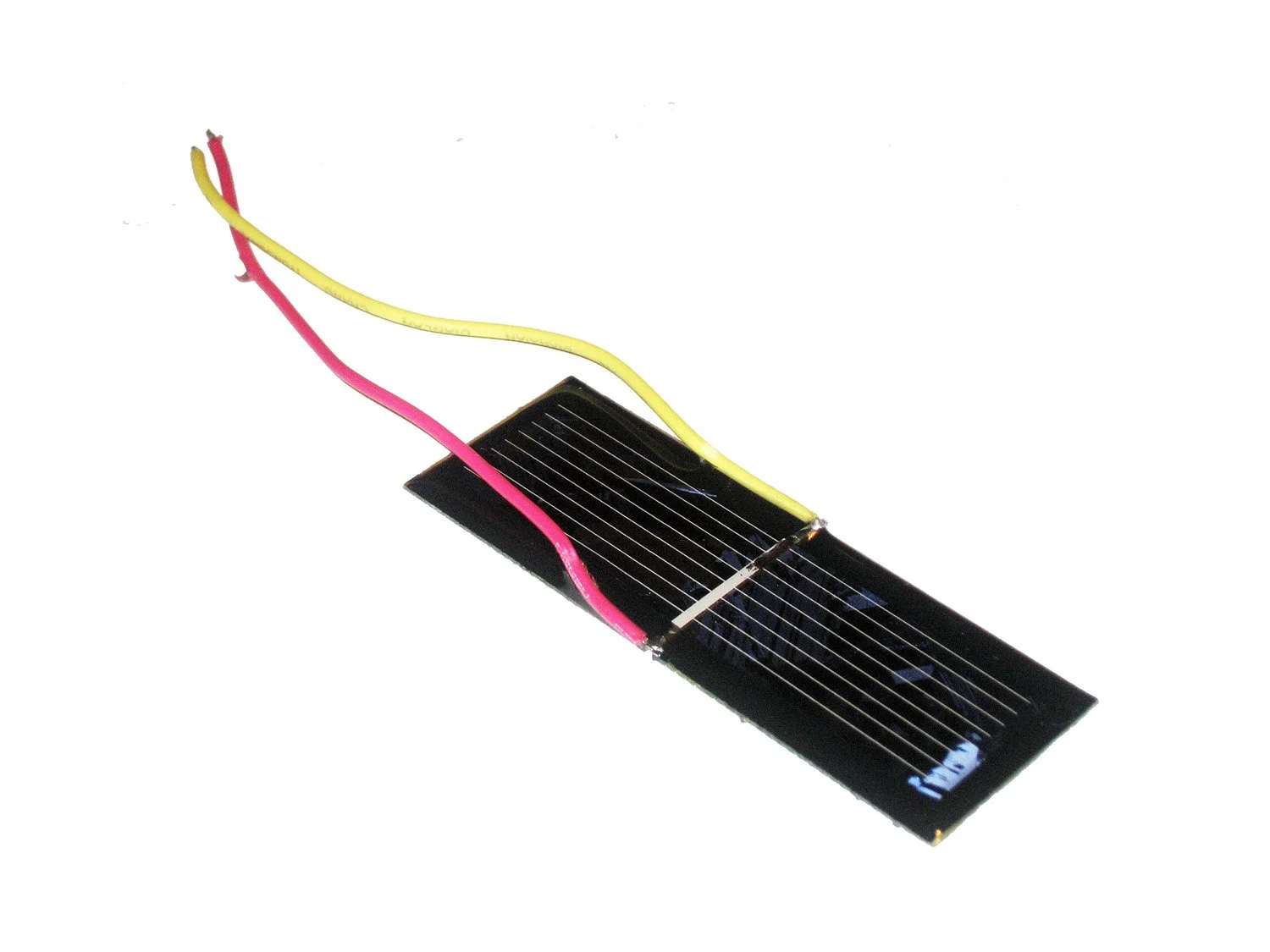

| SOLAR5 | 22 x 84 mm | 1 | 0.18 | 0.05V /0.37A | 100mm |
| SOLAR7 | 78 x 179 mm | 1 | 2.4 | 3.0V / 0.08A | 120mm |
| SOLAR8 | 86 x 147 mm | 1 | 1.44 | 2.0V / 0.35A | --- |
| SOLAR9.5 | 51 x 58 mm | 1 | 0.10 | 1.5V / 0.07A | 100mm |
| SOLAR11 | 91 x 104 mm | 2 | 2 x 0.525 | 2 x 1.5V / 0.35A | --- |

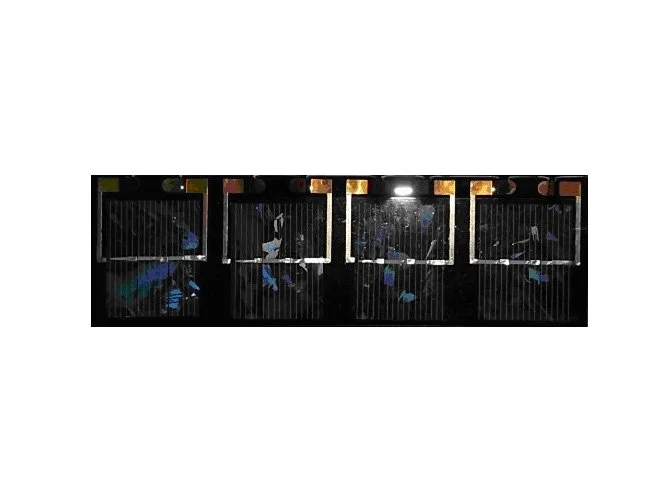

| SOLAR13 | 91 x 216 mm | 4 | 4 x 0.57 | 4 x 1.5V / 0.38A | --- |

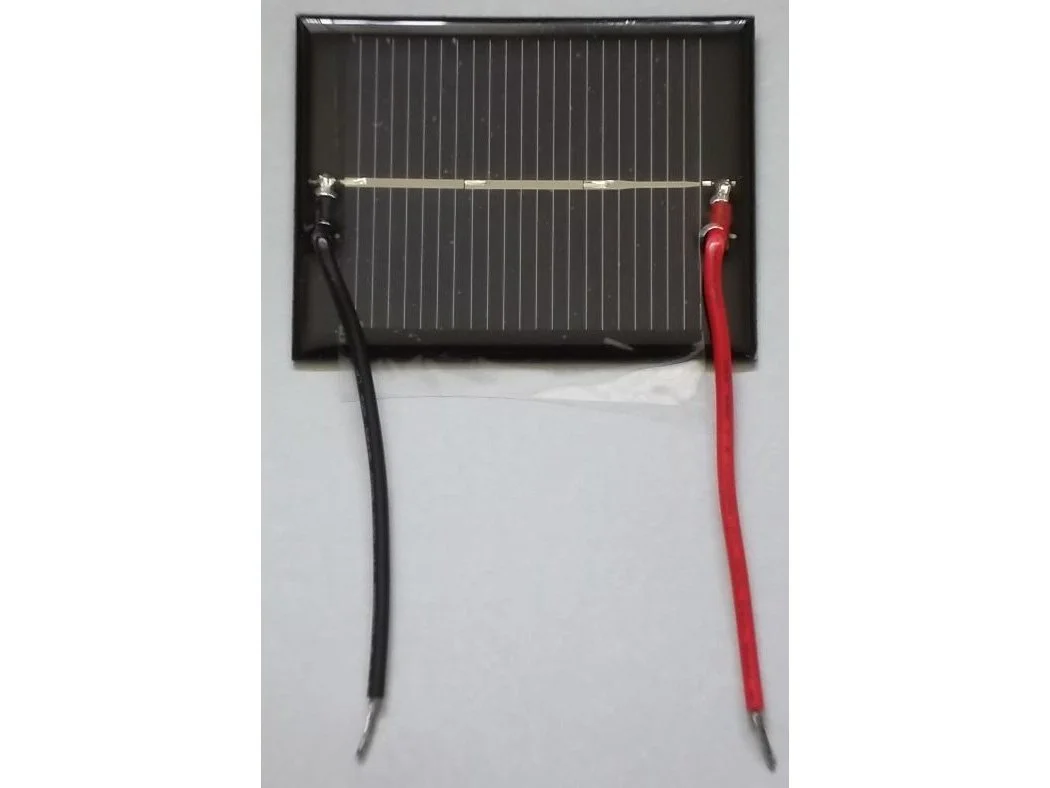

| SOLAR14 | 60 x 78 mm | 1 | 0.45 | 1.5V / 0.3A | 100mm |
| SOLAR17 | 85 x 65 mm | 1 | 0.48 | 4.0V / 0.12A | --- |
| SOLAR23 | 86 x 188 mm | 2 | 2 x 0.85 | 2 x 1.0V / 0.85A | --- |
| CODE | SIZE | WEIGHT | VOLTS/AMPS(NOM) | WATTS |
|---|---|---|---|---|
| SOLAR26 | 160mm x 252mm (350cm²) | 50 grams | 7.0V / 1.0A | 5.0 - 6.0 |
| SOLAR4 | 86mm x 170mm | 70 grams | 2.0V / 0.92A | 1.5 |
| SOLAR10 | 52mm x 56mm | --- | 1.5V / 0.1A | 100% Sun = 100mA |
