The MOTOR SPEED CONTROLLER controls the speed of DC motors or acts as a light dimmer.
Powering an electric motor directly from a battery or power supply will only allow a motor to function at a constant speed. The speed of the motor is directly related to the voltage of the battery or power supply. The MOTOR SPEED CONTROLLER circuit allows the user to adjust the speed of a motor from anywhere between a stopped state up to full speed. The same system can be used as a light dimmer for a 6Volt bulb.
The circuit uses Pulse Width Modulation (PWM) to control the speed of a motor. The way Pulse Width Modulation is used to control motor speed is explained later in this Teaching Unit. This circuit will work with any motor sold by Scorpio Technology. This kit does not contain a motor nor a light bulb.
HINT: When paired with the GENERATOR OUTPUT MONITOR (Code: GOM) and a motor (e.g. MOT17) this is ideal for demonstrating power generation.
Soldering Required: Yes
Hours to Construct: 2 - 4
Components included: Electrical, Electronics & PCB
Level: Subsystem - Intermediate
Click here to see our teaching unit Overview for important information relating to the kit including additional requirements.

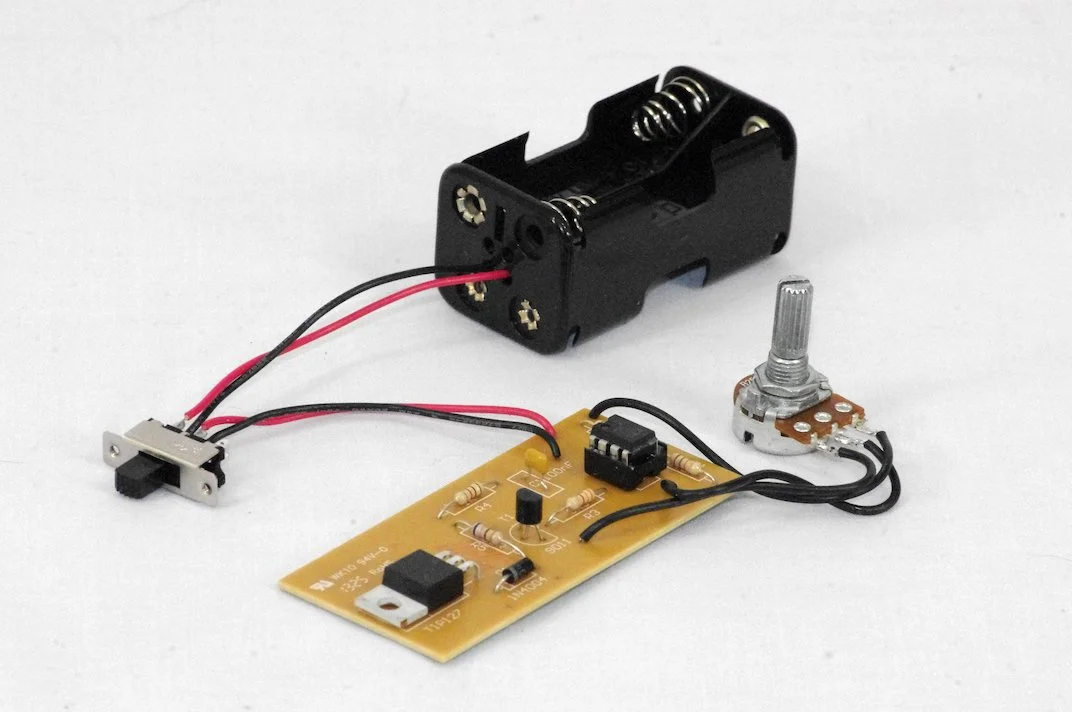

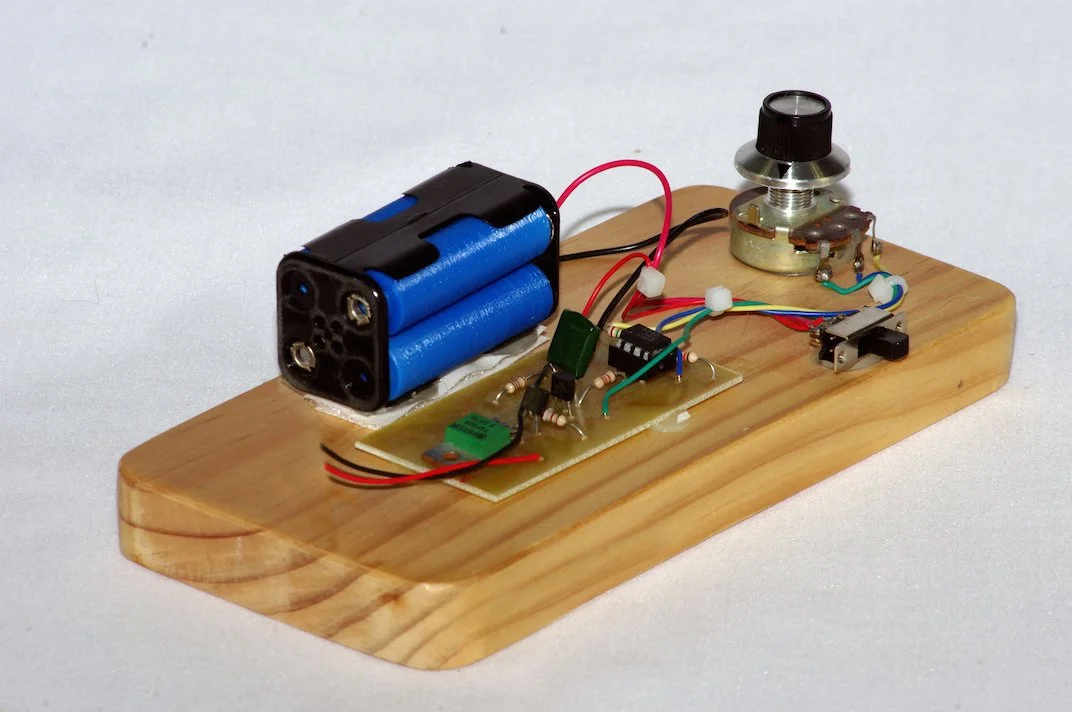

Prototype illustrated is one of several possible outcomes.
Price per kit:
$9.25 (1 - 49)
$9.00 (20+)
IMPORTANT:
TECHNOLOGY KIT CONTENTS. Our kits contain all the electrical, electronic and mechanical components needed to build the device (only). The teacher supplies readily available material for wiring, making body parts, etc. – NO BODY PARTS OR WIRES ARE INCLUDED in the kits. Each order includes comprehensive instructions / Teaching Unit.
