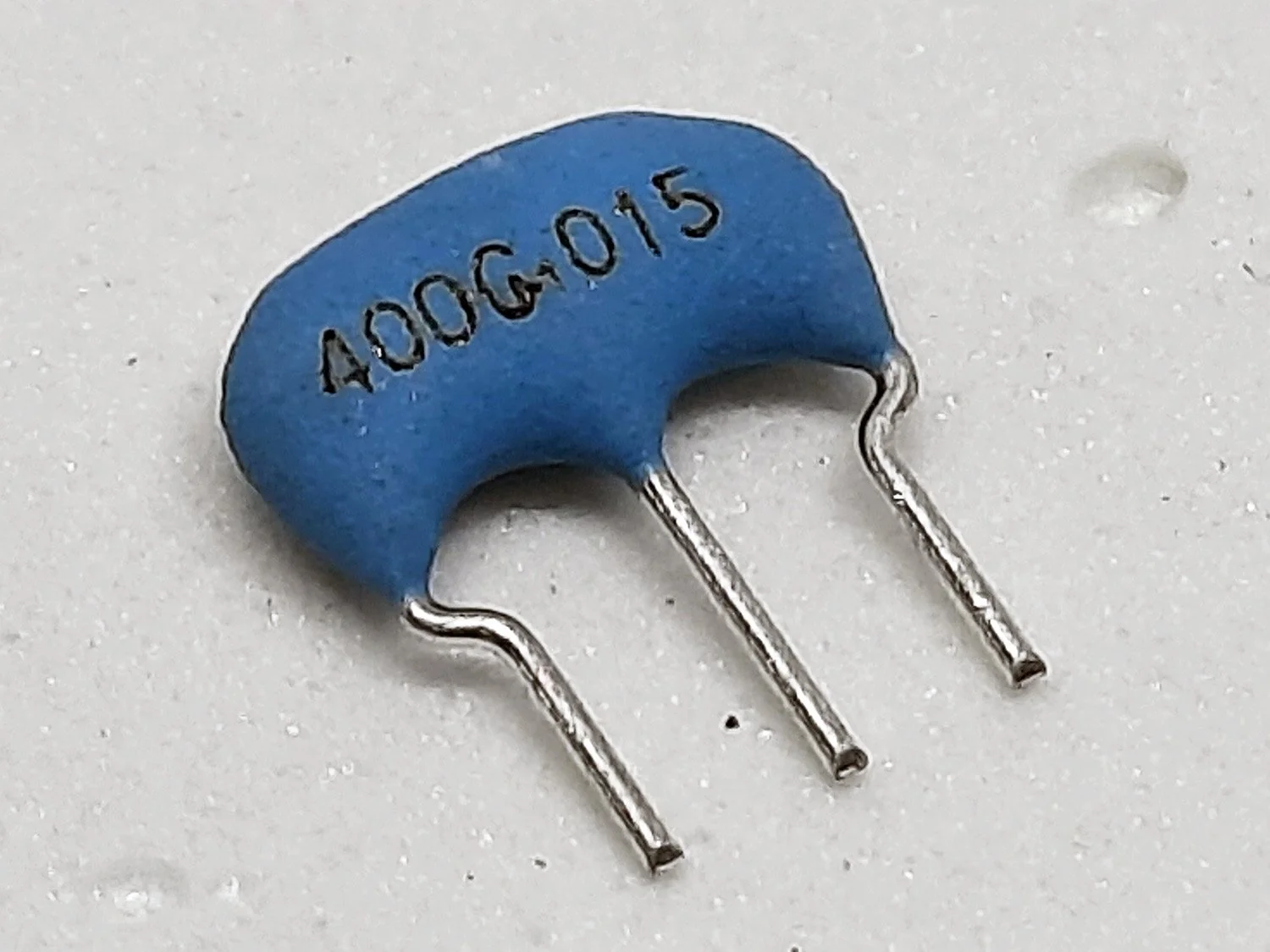

4MHz 3-pin ceramic resonator with built-in load capacitors.
Mounting type: DIP
Built-in Load Capacitance (Cl1/CL2): 15pF
Frequency Tolerance: +/-0.5% max.
Operating Temperature Range: -20°C~80C.
Frequency Shift by Temperature: +/-0.2% max.
Frequency Aging: +/-0.2% max.
Resonant Impedance (R1): 30ohm max.
Lead spacing: 2.5mm (±0.2).
L x W (size): 9.0 x 6.0mm
